JDMR
Zhongke
8479820000

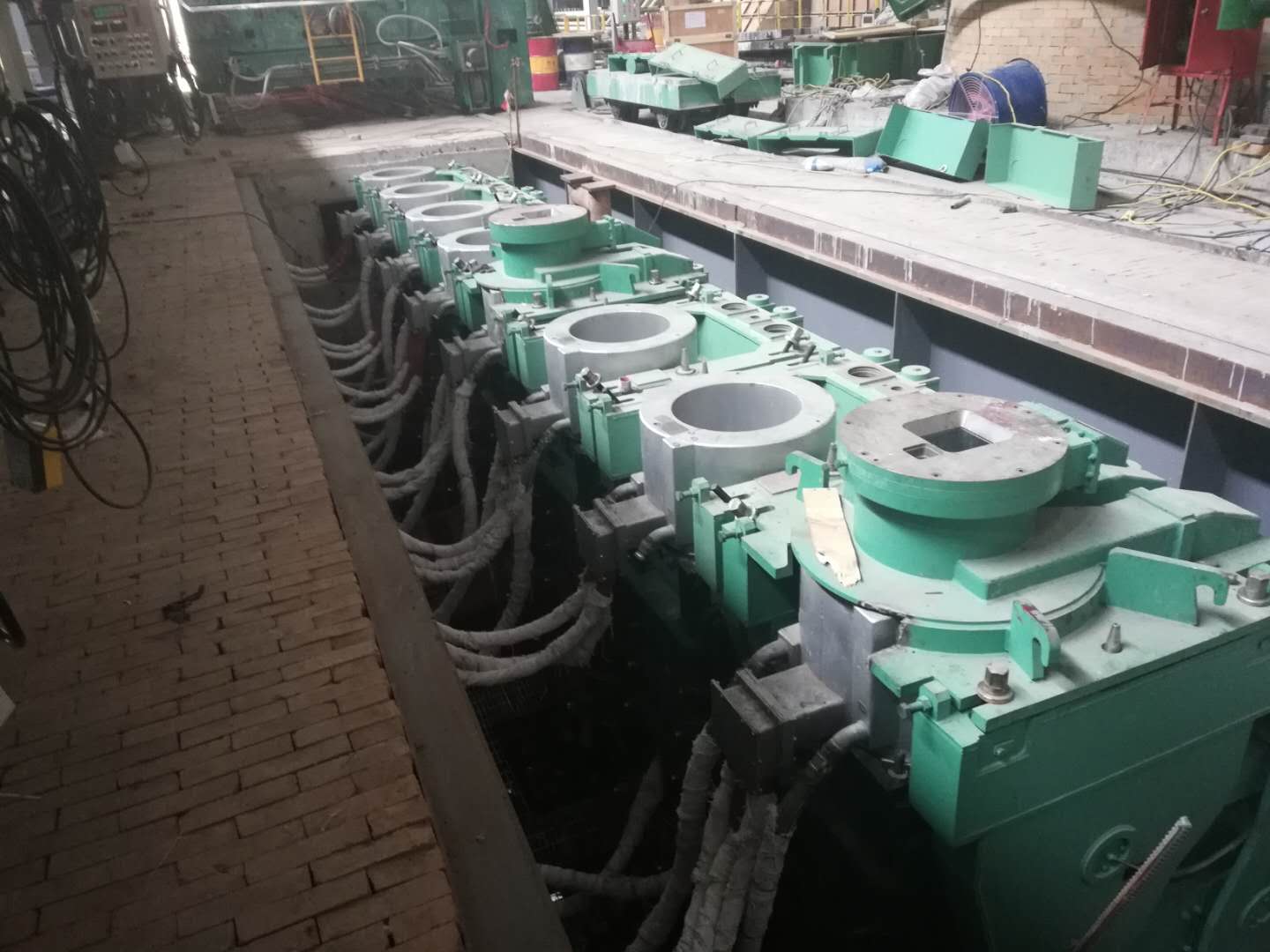

The electromagnetic stirrers are applied in the process of continuous casting of steel to improve quality of casting sections and to increase the productivity.
1. Minimize pinhole and blowhole;
2. Minimize surface and subsurface cracks;
3. Reduce break-out ;
4. Improve solidification structure and reduce internal crack;
5. Minimize center segregation and center porosity.
| No. | Model | Voltage V | Current A | Frequency Hz | Flow m³/h | Dimension mm （In. Dia./Out. Dia*H） | Weight kg | Power kw |
| 1 | DJMR-450SNF | 380 | 400 | 2-7（5） | 7 | φ450/φ715×440 | 500 | 79 |
| 2 | DJMR-475SNF | 380 | 400 | 2-7（5） | 7 | φ475/φ740×440 | 510 | 79 |
| 3 | DJMR-490SNF | 380 | 400 | 2-6（4） | 7 | φ490/φ765×440 | 520 | 79 |
| 4 | DJMR-540SNF | 380 | 500 | 2-6（4） | 7 | φ540/φ810×440 | 530 | 99 |
| 5 | DJMR-310CNE | 380 | 300 | 5 | 0.7 | φ310/φ590×465 | 465 | 59 |
| 6 | DJMR-360CNE | 380 | 400 | 5 | 1.1 | φ360/φ650×450 | 475 | 79 |
| 7 | DJMR-415CNE | 380 | 450 | 5 | 1.26 | φ415/φ730×460 | 480 | 89 |
| 8 | DJMR-465SW | 380 | 400 | 4.5 | 15 | φ590/φ870×350 | 618 | 79 |
| 9 | DJMR-470SW | 380 | 400 | 4.5 | 15 | φ460/φ784×535 | 919 | 79 |
The electromagnetic stirrers are applied in the process of continuous casting of steel to improve quality of casting sections and to increase the productivity.
1. Minimize pinhole and blowhole;
2. Minimize surface and subsurface cracks;
3. Reduce break-out ;
4. Improve solidification structure and reduce internal crack;
5. Minimize center segregation and center porosity.
| No. | Model | Voltage V | Current A | Frequency Hz | Flow m³/h | Dimension mm （In. Dia./Out. Dia*H） | Weight kg | Power kw |
| 1 | DJMR-450SNF | 380 | 400 | 2-7（5） | 7 | φ450/φ715×440 | 500 | 79 |
| 2 | DJMR-475SNF | 380 | 400 | 2-7（5） | 7 | φ475/φ740×440 | 510 | 79 |
| 3 | DJMR-490SNF | 380 | 400 | 2-6（4） | 7 | φ490/φ765×440 | 520 | 79 |
| 4 | DJMR-540SNF | 380 | 500 | 2-6（4） | 7 | φ540/φ810×440 | 530 | 99 |
| 5 | DJMR-310CNE | 380 | 300 | 5 | 0.7 | φ310/φ590×465 | 465 | 59 |
| 6 | DJMR-360CNE | 380 | 400 | 5 | 1.1 | φ360/φ650×450 | 475 | 79 |
| 7 | DJMR-415CNE | 380 | 450 | 5 | 1.26 | φ415/φ730×460 | 480 | 89 |
| 8 | DJMR-465SW | 380 | 400 | 4.5 | 15 | φ590/φ870×350 | 618 | 79 |
| 9 | DJMR-470SW | 380 | 400 | 4.5 | 15 | φ460/φ784×535 | 919 | 79 |
