JDMR
Zhongke
8479820000

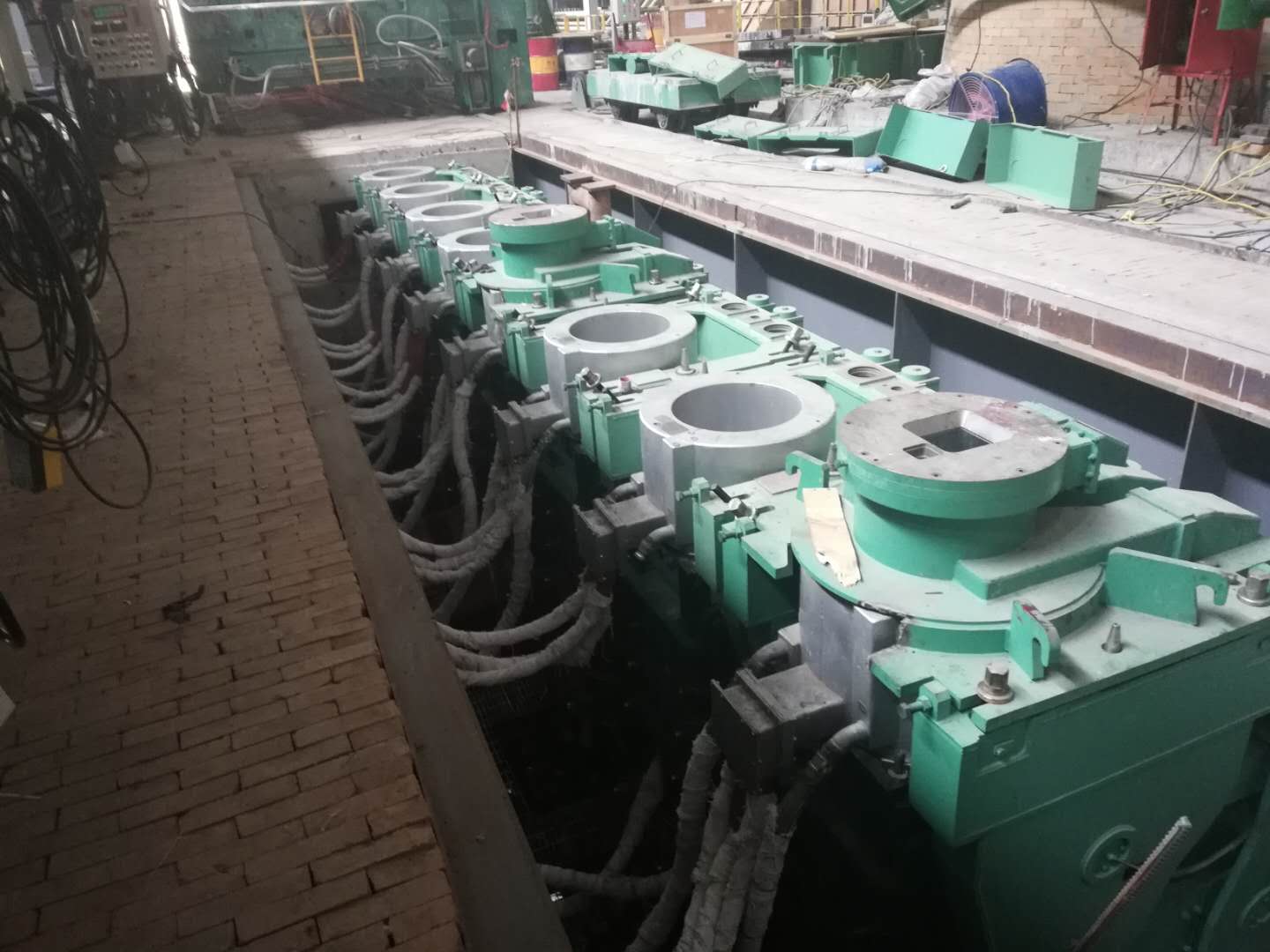

The mold electromagnetic stirrer (M-EMS) is installed in the mold zone. The movement of unsolidified molten steel is accelerated through the electromagnetic force generated by the electromagnetic stirring, thereby changing the flow, heat transfer and migration process of the molten steel during the solidification process, so as to achieve the purpose of improving the quality of the billet.
Solidification structure improvement;
Equiaxed structure-grain refinement;
Surface quality improvement;
Pinhole and blowhole reduction.
| No. | Model | Voltage V | Current A | Frequency Hz | Flow m³/h | Dimension mm （In. Dia./Out. Dia*H） | Weight kg | Power kw |
| 1 | DJMR-450SNF | 380 | 400 | 2-7（5） | 7 | φ450/φ715×440 | 500 | 79 |
| 2 | DJMR-475SNF | 380 | 400 | 2-7（5） | 7 | φ475/φ740×440 | 510 | 79 |
| 3 | DJMR-490SNF | 380 | 400 | 2-6（4） | 7 | φ490/φ765×440 | 520 | 79 |
| 4 | DJMR-540SNF | 380 | 500 | 2-6（4） | 7 | φ540/φ810×440 | 530 | 99 |
| 5 | DJMR-310CNE | 380 | 300 | 5 | 0.7 | φ310/φ590×465 | 465 | 59 |
| 6 | DJMR-360CNE | 380 | 400 | 5 | 1.1 | φ360/φ650×450 | 475 | 79 |
| 7 | DJMR-415CNE | 380 | 450 | 5 | 1.26 | φ415/φ730×460 | 480 | 89 |
| 8 | DJMR-465SW | 380 | 400 | 4.5 | 15 | φ590/φ870×350 | 618 | 79 |
| 9 | DJMR-470SW | 380 | 400 | 4.5 | 15 | φ460/φ784×535 | 919 | 79 |
